Power Plant SS316 High Pressure Centrifugal Water Pump 15-28m3/H

Product Categories
CHANGSHA SANCHANG PUMP CO., LTD.
Contact Now

Power Plant SS316 High Pressure Centrifugal Water Pump 15-28m3/H

  • 1
  • 2

Brand Name : SANCHANG

Model Number : D25-50X8

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiated

Payment Terms : L/C, T/T

Supply Ability : 300pcs/month

Delivery Time : 30 working days

Packaging Details : Plywood Case

Flow Capacity : 15-28m3/h

Delivery Head : 144-618m

Inlet/Outlet Dia. : 80mm/80mm

Working Pressure : <9.27MPa

Liquid Temperature : 0-80 ℃

Application : Clean Water, Sewage, Hot Water, Corrosive Liquid, Mining Water

Material : Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205

Dirven By : Electric Motor / Diesel Engine

Voltage : 380V/400V/415V/440V/460V

Speed : 2980/3560rpm

Seal : Gland Packing/Mechanical Seal

Frequency : 50/60Hz

Contact Now

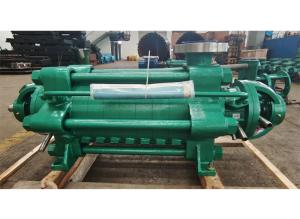

Horizontal Ring Section Multistage Centrifugal Water Pump D25-50X8 (Bare Shaft Pump)

Description

The D series Multistage Ring Section Centrifugal Water Pump is a utility-grade, high-pressure, ring section pump with heavy duty, segmental ring, diffuser design. Axial thrust balance device with stacked rotor construction. Suitable for boiler feed pump and high building, long distance water transferring.

Features

High operating reliability
* Axial thrust balancing by balance disc.
* Adaptation of pump casing to rotor deflection line.

Ease of service
* Easy maintenance of wear parts (bearings, seal elements, balancing devices).
* Metal-to-metal sealing of casing.

Long service life
* Avoidance of cavitation erosion inside the pump through hydraulically optimised inlet.
* Variant straight shaft design featuring increased operation safety.

Reduced energy costs
* No pre-warming of pump required.
* More than 100 impeller/diffuser combinations with optimum efficiencies possible.

Application
* boosting in General Industries of chemical process
* Sewage Treatment Plant
* Marine & offshore
* Power Plant
* Sea Water Desalination
* Petrochemical processing
* Clear and lightly contaminated liquids
* Commercial water supply, High building water supply
* Mining water discharge

Parameters

Flow Capacity 15-28 m3/h Delivery Head 144-618 m
Inlet/Outlet Dia. DN80/DN80 mm Working Pressure ≤ 9.27 MPa
Liquid Temperature 0 - 80 ℃ Driven By Electric Motor / Diesel Engine
Seal Type Mechanical seal / Gland packing Liquid Clean water or similar
Material of Construction Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

Power Plant SS316 High Pressure Centrifugal Water Pump 15-28m3/H

Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
Parts Name Clean Water Sewage Hot Water Corrosive Liquid Oil Liquid
Pump Body Cast Iron Ductile Iron Cast Steel/S.S304 S.S304/S.S316/S.S2205 S.S304/S.S316
Shaft Cast Iron S.S420 S.S420/42CrMo S.S630 S.S420/40Cr
Shaft Sleeve Carbon Steel S.S420 S.S304 S.S316/S.S630/S.S2205 S.S304/S.S316
Impeller Cast Iron Ductile Iron Cast Steel/S.S304 S.S304/S.S316/S.S2205 S.S304/S.S316
Wearing Ring Cast Iron Ductile Iron Cast Steel/S.S304 S.S304/S.S316/S.S2205 S.S304/S.S316
Bearing China Make/NSK/SKF/Customized
Seals Mechanical Seals/Gland Packing Seals

Power Plant SS316 High Pressure Centrifugal Water Pump 15-28m3/H

Power Plant SS316 High Pressure Centrifugal Water Pump 15-28m3/H
